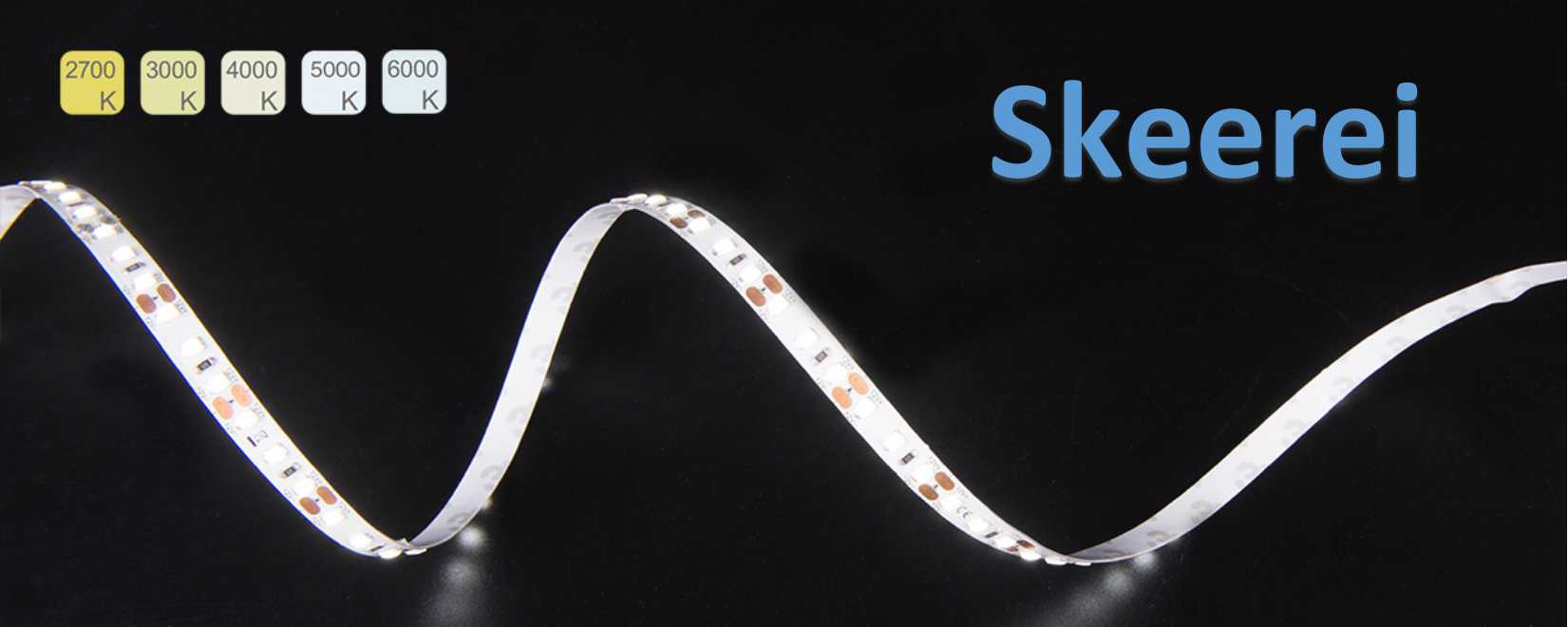

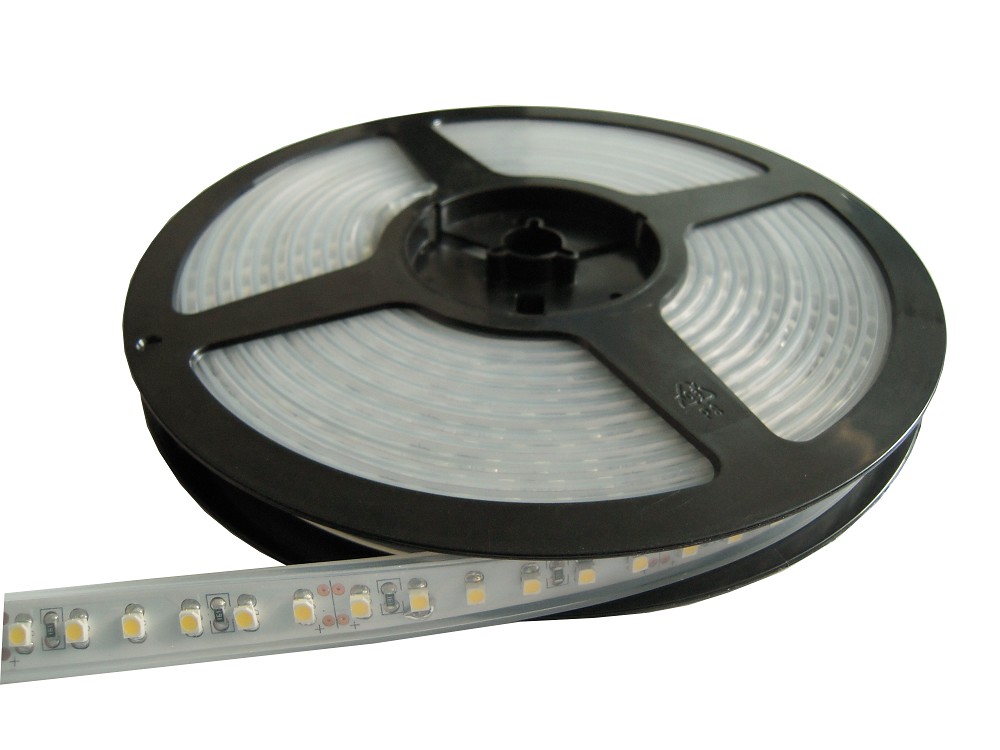

3528 LED Strip
1. Basic information
PCB Color: Brown, White, Black
IP Grade: IP20, IP65, IP67, IP68.
Working temperature:-20℃~+45℃
Lifespan: >30000Hrs
2. Technical Parameters
| Model No. | Color | LED QTY/m | Size(mm) | LED Type |
Luminous flux(Lm/m) |
Power (W/m) |
| BT-3528CW-60 | 6000K | 60 | 5000*8*1.5 | 3528 Epistar LED | 420 | 4.8 |
| BT-3528NW-60 | 4000K | 5000*8*1.5 | 3528 Epistar LED | 410 | ||
| BT-3528WW-60 | 3000K | 5000*8*1.5 | 3528 Epistar LED | 400 | ||
| BT-3528R-60 | Red | 5000*8*1.5 | 3528 Epistar LED | 150 | ||
| BT-3528G-60 | Green | 5000*8*1.5 | 3528 Epistar LED | 220 | ||
| BT-3528B-60 | Blue | 5000*8*1.5 | 3528 Epistar LED | 90 | ||
| BT-3528Y-60 | Yellow | 5000*8*1.5 | 3528 Epistar LED | 170 | ||
| BT-3528CW-120 | 6000K | 120 | 5000*10*1.5 | 3528 Epistar LED | 840 | 9.6 |
| BT-3528NW-120 | 4000K | 5000*10*1.5 | 3528 Epistar LED | 820 | ||
| BT-3528WW-120 | 3000K | 5000*10*1.5 | 3528 Epistar LED | 800 | ||
| BT-3528R-120 | Red | 5000*10*1.5 | 3528 Epistar LED | 300 | ||
| BT-3528G-120 | Green | 5000*10*1.5 | 3528 Epistar LED | 440 | ||
| BT-3528B-120 | Blue | 5000*10*1.5 | 3528 Epistar LED | 180 | ||
| BT-3528Y-120 | Yellow | 5000*10*1.5 | 3528 Epistar LED | 340 |
3. Connection
